More Than Just Crushing: A Step-by-Step Look at the Aggregate Processing Workflow

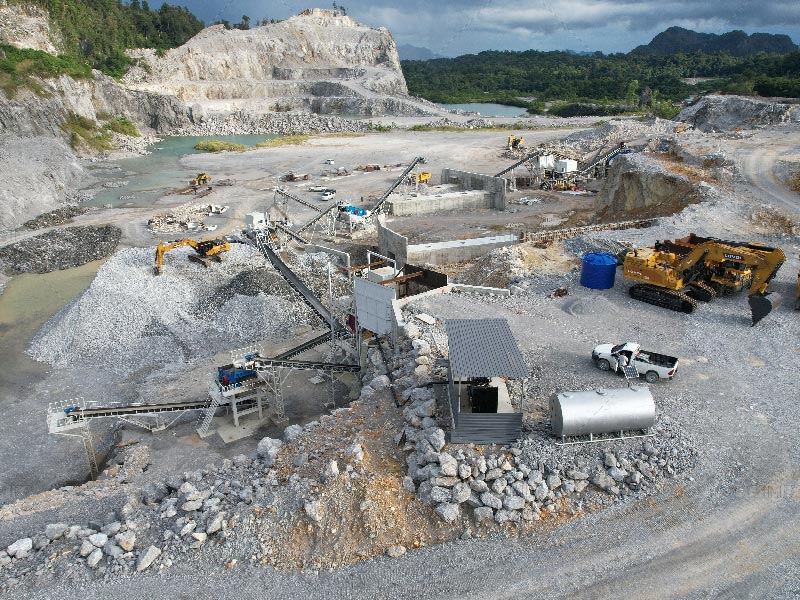

When people think of aggregate production, they often imagine rocks being crushed into smaller pieces—and while that's certainly part of it, the process is far more intricate. From raw material extraction to final sorting and stockpiling, the modern aggregate crusher plant is a carefully engineered system designed to produce high-quality materials for construction, road building, and concrete manufacturing. Whether you're processing river gravel, granite, or using a limestone crusher for cement production, understanding the full workflow ensures consistent output and optimized efficiency.

In this article, we'll walk through the entire aggregate processing cycle(planta procesadora de agregados), breaking down each stage and highlighting the roles of equipment like feeders, screens, conveyors, and specialized machines such as the debris crusher.

Step 1: Material Extraction and Transportation

The Starting Point of Aggregate Production

The process begins at the quarry or mining site, where raw material—such as limestone, basalt, or construction debris—is extracted. In natural rock operations, blasting or hydraulic breaking is used to loosen material from the rock face. For recycled aggregates, excavators may retrieve demolition waste for processing.

Once collected, the raw material is loaded into dump trucks or conveyors and transported to the primary crushing area of the aggregate crusher plant. Efficient transport systems are crucial, especially for large-scale or remote operations.

Step 2: Primary Crushing

The Role of the Limestone Crusher

The first mechanical stage in the crushing process is the primary crusher, where large rocks (sometimes over 1 meter in diameter) are reduced to manageable sizes. A limestone crusher(trituradora de caliza), typically a jaw or impact crusher, handles soft to medium-hard rocks efficiently and is a staple in cement and road base aggregate production.

Primary crushers break the material down to about 100–300 mm in size, depending on the configuration. The goal is to prepare the raw feed for further reduction and classification.

Step 3: Screening and Material Separation

Sorting by Size for Further Processing

After primary crushing, the material is transferred to vibrating screens. These screens separate particles based on size, ensuring that only oversized material moves on to secondary crushing. Proper screening not only enhances quality but also increases plant efficiency by reducing the load on downstream crushers.

At this point, fines and appropriately sized aggregates may be directed to final stockpiles, while larger pieces are sent back for additional processing.

Step 4: Secondary and Tertiary Crushing

Enter the Debris Crusher and Specialized Equipment

For aggregates requiring more refinement, the material undergoes a second or even third stage of crushing. This is where cone crushers, impact crushers, and the debris crusher(maquina trituradora de escombro) come into play. The debris crusher is particularly useful for recycling operations where materials like reinforced concrete, bricks, and asphalt need to be broken down into reusable sizes.

In secondary and tertiary crushing stages, machines are often configured in a closed-loop system with screens, ensuring only material that meets the desired specification is passed on.

Step 5: Final Screening and Grading

Precision Sorting for Multiple Applications

Once the aggregate has passed through all necessary crushing stages, it undergoes a final screening process to ensure proper size grading. Multi-deck vibrating screens sort material into different size ranges such as 0–5 mm, 5–10 mm, and 10–20 mm—ideal for various applications like drainage, concrete mixes, or asphalt base layers.

Any material that still doesn't meet spec is recirculated for further crushing, maintaining a high standard of quality and minimizing waste.

Step 6: Washing and Dust Suppression (Optional)

Improving Cleanliness and Environmental Compliance

In certain projects, especially those involving high-performance concrete or environmentally regulated areas, the aggregate must be washed to remove dust, clay, or other impurities. Washing systems are integrated into the aggregate crusher plant with water recycling and sediment separation features to minimize water usage and comply with environmental standards.

Dust suppression systems may also be installed throughout the plant to reduce airborne particles, protecting both workers and the surrounding environment.

Step 7: Stockpiling and Load-Out

The Final Step Before Delivery

After screening and optional washing, the final product is conveyed to storage piles or silos. From there, it is loaded into trucks for transport to job sites or further processing facilities. Consistency in grading and cleanliness at this stage is vital to meet construction standards and avoid costly delays at the job site.

Advanced plants use automation and weighbridge integration to speed up truck loading and monitor outgoing inventory, improving overall logistics.

Conclusion: A Well-Orchestrated Operation

The aggregate crusher plant is far more than a simple rock-crushing station. It's a fully integrated system of machines and processes—from limestone crusher to debris crusher, from primary reduction to final screening—that transforms raw material into precision-engineered aggregate.

By understanding each step in the workflow, plant operators can optimize performance, reduce waste, and deliver high-quality material that meets diverse construction demands. So next time you see a pile of crushed stone, remember: behind every aggregate is a finely tuned operation working in harmony with nature and technology.
